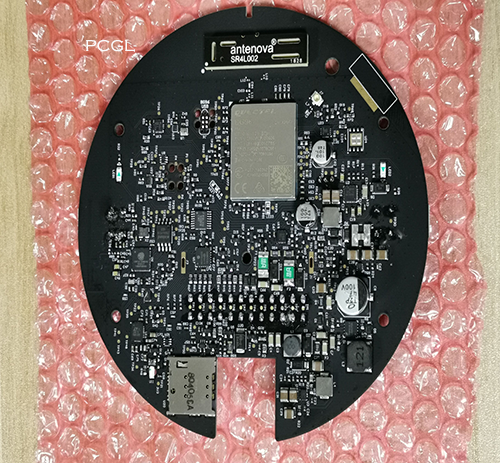

ORB-X1-Gerber PCBA

ORB-X1-Gerber PCBA

Prototype PCBA details:

Size :  120 mm Round

Silkscreen :  White

Via Process :  Tenting vias

Finished Copper :  1 oz Cu (Inner Copper:1 oz)

DELIVERY TO AUSTRALIA

What do we need to quote for PCBA project?

1. Bill of material, complete information in excel format. It includes manufacturers' name, part number, reference designators, components description and quantities.

2. Complete Gerber files

3. PCB requirements (board thickness, copper thickness, surface finishing, solder mask color, etc)

4. Pick and place data

5. Other requirements such as special packing or assembly instructions, pictures if applicable.

6. QTY
