5G Gateway PCB_PCBA

One-Stop PCB_PCBA Manufacturing Solution for High-End 5G Gateways
We specialize in both high-speed, multi-layer PCB fabrication and end-to-end PCBA services tailored for advanced 5G gateway applications. In a recent project, we successfully delivered a complex assembly integrating over 150 component types, including high-density BGA packages, with full X-Ray and AOI inspection to ensure quality and performance.

Our Core Strengths
High-Frequency PCB Fabrication – Designed for ultra-fast 5G transmission and signal integrity
Comprehensive BOM Support – Efficient sourcing of 150+ components with verified alternatives and documentation
Precision SMT Assembly – Expert handling of BGA, QFN, QFP, and fine-pitch components
100% X-Ray Inspection – Ensuring perfect solder joints for all BGA packages
100% AOI Optical Inspection – Complete visual verification of SMT process accuracy
Functional Testing & Assembly – Optional test procedures and full-system integration
Applications
Our PCBA solutions are widely deployed in:
Residential and Industrial 5G CPE Routers
Industrial Edge Computing Gateways
Smart City Communication Nodes
Case Study: AI Edge Gateway Powered by TI AM69A98ATGGHAALYR
We recently completed a high-performance AI edge computing PCBA based on Texas Instruments AM69A98ATGGHAALYR, developed for industrial-grade 5G edge gateway platforms. The solution enables real-time AI inference and high-throughput video processing in harsh environments.
Project Highlights:

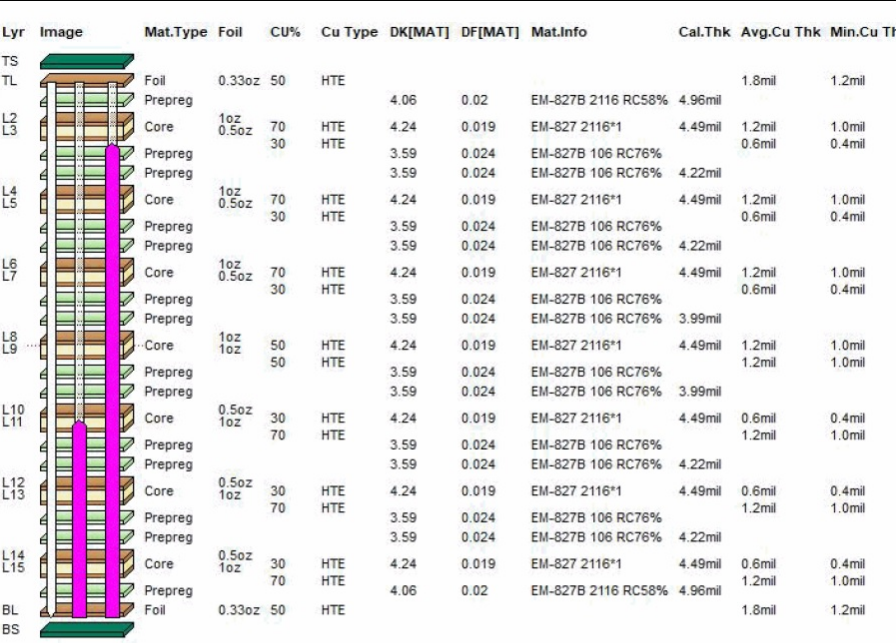

12-layer high-speed PCB, using TG180 high-Tg FR4 for thermal reliability and signal performance
FC-BGA (0.65mm pitch) soldering with 100% X-Ray verification
BOM with 150+ components, including DDR memory, eMMC, PMICs, filters, and ESD protection
100% AOI inspection and full functional testing for guaranteed quality
