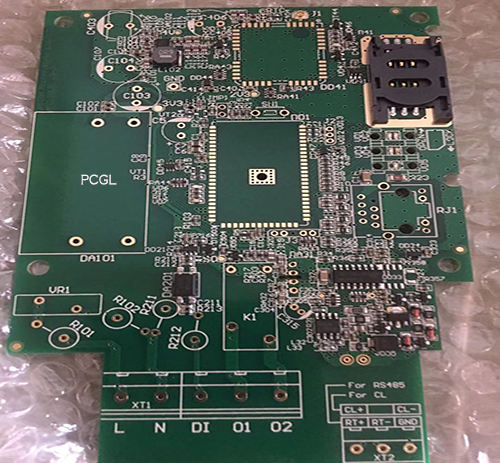

AMC190(G) V3.0 PCBA

2layer, rigid PCB, FR-4 1.6MM 35/35UM ENIG FINISHING, GREEN SOLDER MASK/WHITE LEGEND.

PCB size: 143.5*93MM/1PCS

PCGL OFFER electronics components procurement, smt/tht production.

What do we need to quote PCBA project?

1. Bill of material, complete information in excel format. It includes manufacturers' name, part number, reference designators, components description and quantities.

2. Complete Gerber files

3. PCB requirements (board thickness, copper thickness, surface finishing, solder mask color, etc)

4. Pick and place data

5. Other requirements such as special packing or assembly instructions, pictures if applicable.

6. QTY
