Our factory has more than 10,000 square meters of copper clad laminate in stock. We have established close business relationships with local copper clad laminate manufacturers to ensure that we can obtain copper clad laminates of various specifications at the best price in the shortest time.
We understand that your designs might be made with a very specific material in mind, in order to meet signal integrity and HDI PCB requirements, so we will accommodate your PCB material preferences. We also use North American materials such as Isola 370HR, FR408HR,Rogers,Taconic, Arlon etc., upon request, to satisfy your engineering needs.

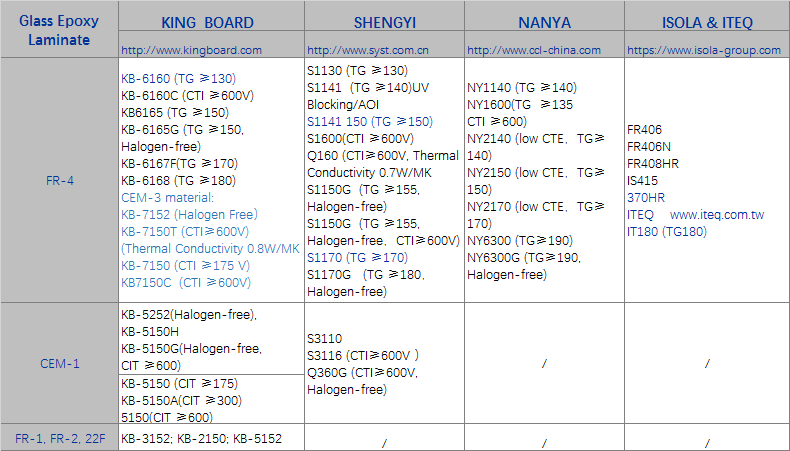

Material of Glass Epoxy Laminate (FR-4)

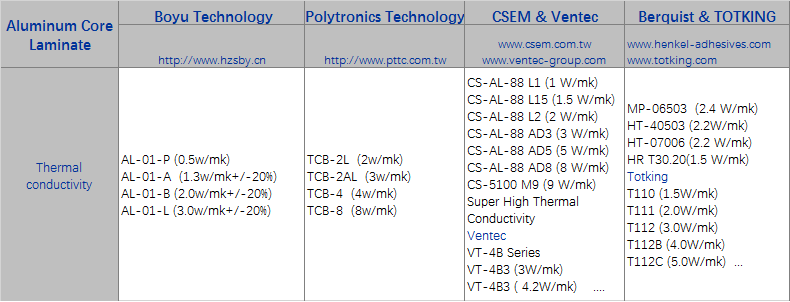

Material of Aluminum Core Board

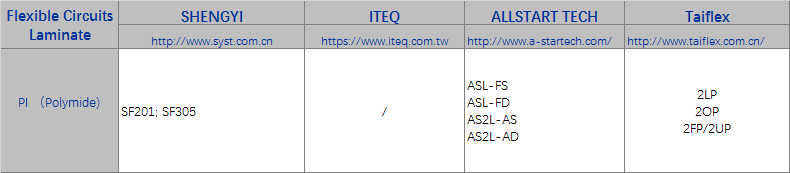

Material of Flexible Circuit Board

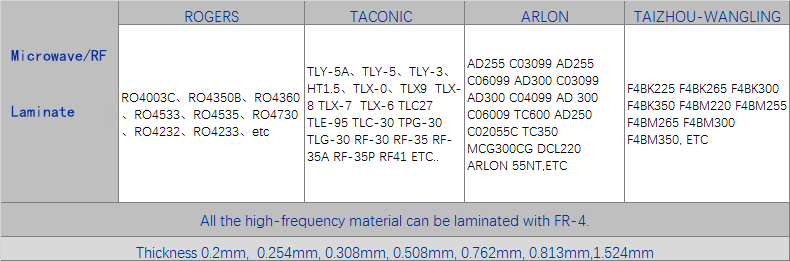

Material of High-frequency Board

Low loss / low Dk, higher performance FR-4, PPO, Teflon, hydrocarbon / ceramic filled

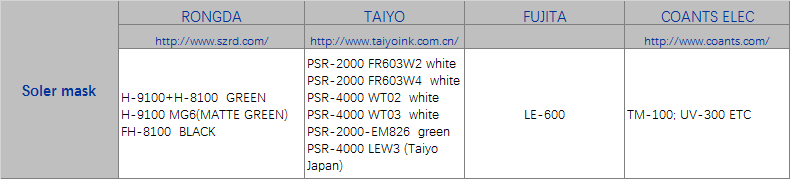

Soldermask Brand

If you have any concerns regarding our material selection methodology or if you have any queries regarding specific materials copper clad ,solder mask, etc, please feel free to contact us at any time. Our sales team will be more than happy to assist you as well as provide you with information on pricing and/or lead-time regarding any material. Our engineering team will be more than happy to work with you on creating stack-ups and performing impedance calculations, etc.

PLS download the material datasheet from the download page.
